DIY Draught Seal Kit for One Double Hung Sash Window (22mm Stop Bead)

DIY Draught Seal Kit for One Double Hung Sash Window (22mm Stop Bead)

Name: DIY Draught Seal Kit for One Double Hung Sash Window (22mm Stop Bead)
Rating: 5.00 (2 reviews)

Price

Save

Staff beads and parting beads with the brush seal already fitted, plus a meeting rail draught stopper and sash cord. One kit seals one double hung sash window up to 2m high and 1m wide.

Stop bead size

22mmYou're viewing30mmView this kit

Not sure which size? How to check or call 02 7228 0625

Brush and fin pre-fitted
FSC-certified pine, primed
11m Donaghys sash cord
Australian made

Style No Hardware Include Polished Brass Hardware Kit Include Polished Chrome Hardware Kit Include Satin Chrome Hardware Kit Include Antique Brass Hardware Kit

Colour of Brush Grey Brush (In Stop Bead) White Brush (In Stop Bead)

Quantity

Delivery Australia-wideShipping calculated at checkout

Free pick-up in Warriewood, SydneyWe'll message you the address when it's ready

Questions? 02 7228 0625Talk to us before you buy or while you fit it

You might also need

DIY Draught Seal Kit for One Double Hung Sash Window (22mm Stop Bead)

What's in the kit

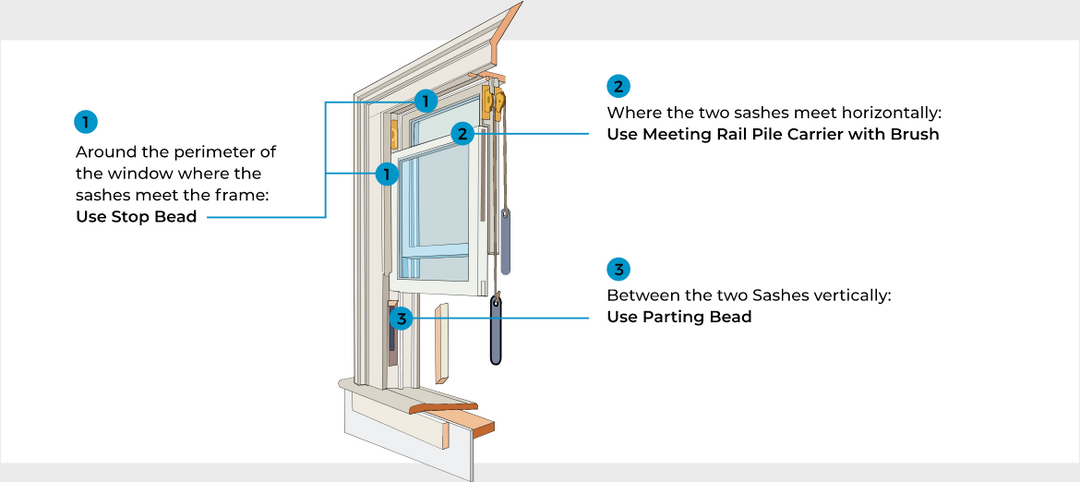

Everything to seal one double hung sash window

For windows up to 2m high and 1m wide. Doing more than one window? Order one kit per window.

4×

Staff beads with brush seal

2 × 2m and 2 × 1m, 22 × 18mm

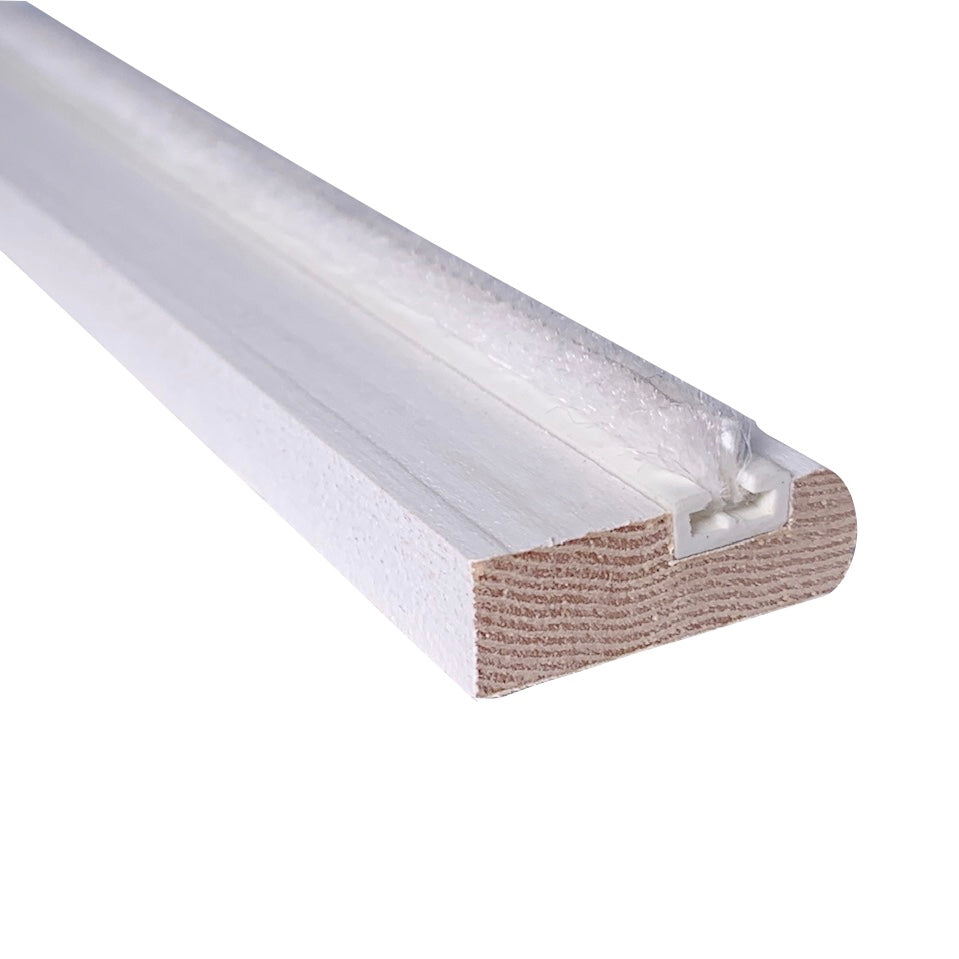

3×

Parting beads

2 × 2m and 1 × 1m, 25 × 8mm

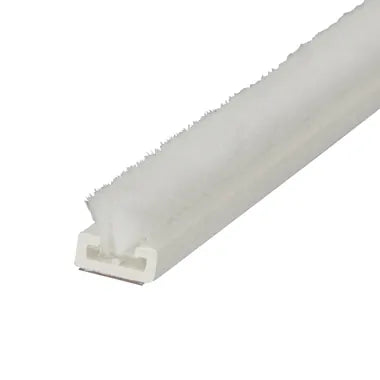

1×

Meeting rail draught stopper

1m brush strip

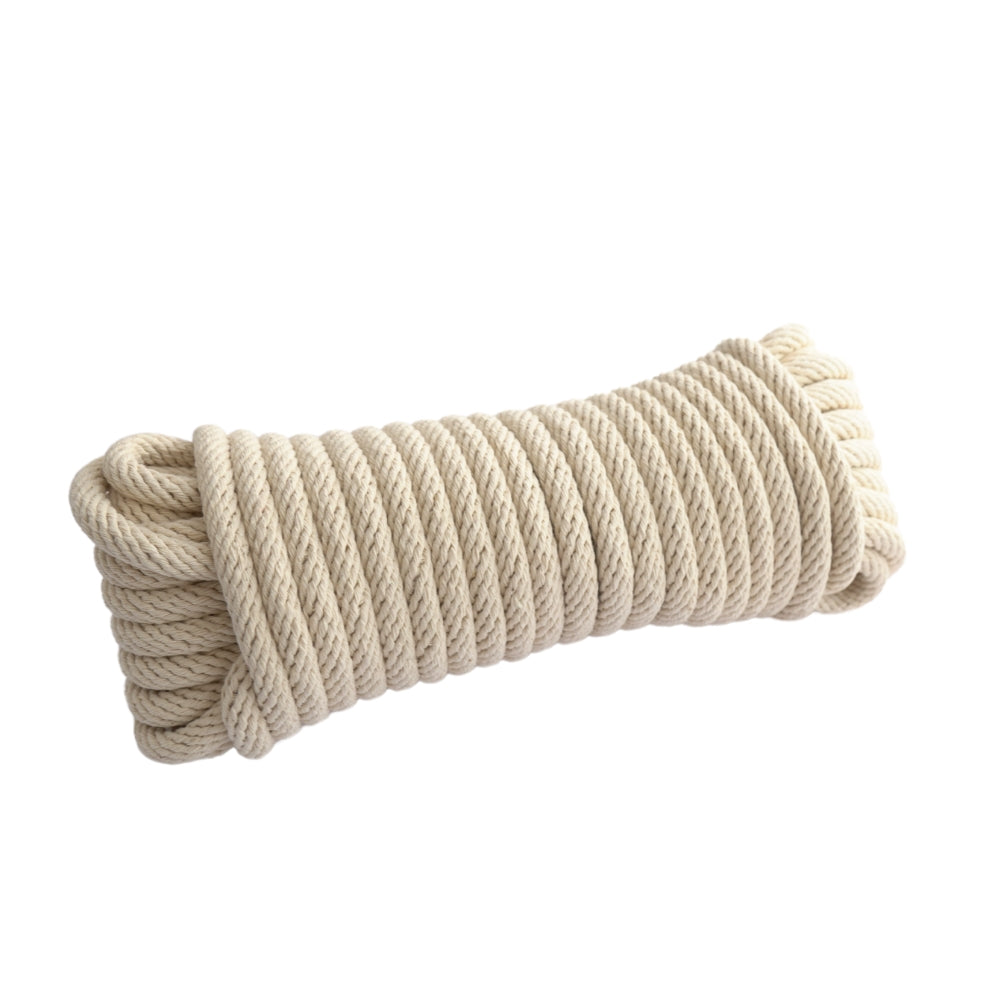

11m

Donaghys 8mm sash cord

One hank, for use with our pulleys

Timber: FSC-certified solid pine, lightly primed with undercoat. Give it a final paint once it's installed. As a natural material, it may have knots and grain variation that don't affect how it performs.

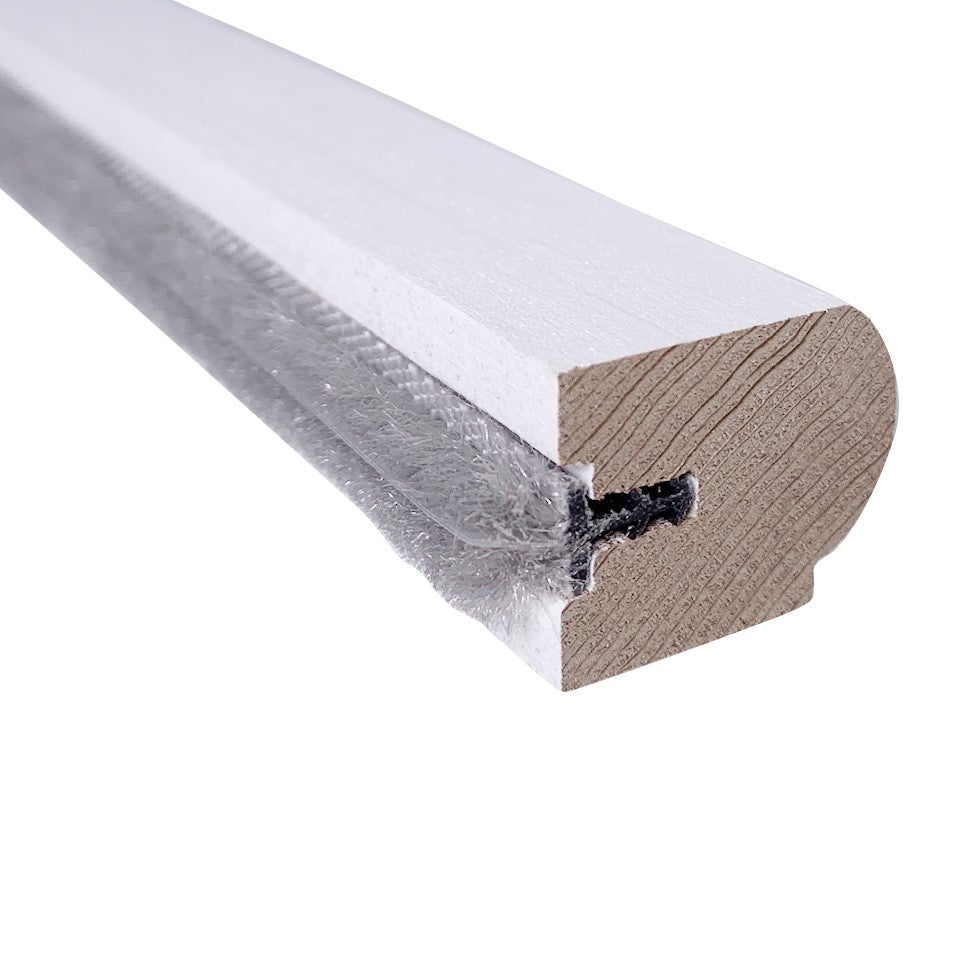

Close up of the brush seal fitted into the staff bead

How the seal works

Brush and fin, already fitted in the timber

Kerf-fit brush

The brush sits in a slot cut into the bead, not stuck on the surface, so it stays put and looks neat.

The fin does the sealing

A plastic fin runs through the middle of the brush. Fit the bead so the fin touches the sash and it forms the weather seal.

Made for sliding sashes

Brush seals let the sashes slide up and down. Compression seals aren't suited to sliding windows.

No assembly needed

Just measure, cut to length and nail in. You don't need to fit carriers or brush yourself.

Which kit do I need?

Choose by the width of your stop bead

Both kits include the same parting beads, meeting rail draught stopper and sash cord. Only the staff beads differ.

You're viewing

22mm

22 × 18mm staff beads

Suits stop beads around 22mm wide.

Other size

30mm

30 × 18mm staff beads

Suits wider stop beads, around 30mm.

View the 30mm kit →

How to check: measure across the face of the bead that holds your bottom sash in place (the stop or staff bead). Not sure which you have? Send us a photo or call 02 7228 0625 and we'll help.

Installation

Fit it yourself, step by step

Step-by-step instructions are included, and we're a phone call away if you get stuck.

Remove the old beads

Cut through the paint, lever off the staff beads, lift out the bottom sash and remove the parting beads.

Fit the parting beads

Measure, cut and nail in. Brush faces in on the bottom half and out on the top half.

Refit the bottom sash

Once the parting beads are in, put the bottom sash back in place.

Fit the staff beads

Push them up to the sash so the gap closes but the window still slides, then nail in.

Watch the installation video

Full step-by-step instructions

Tip: have everything on site before you start. Courier delays do happen and are outside our control.

Step by Step Instructions:

1. Remove the existing staff or stop beads. Start by running a knife around the edge of the beading to cut through the paint. Then use a flat pry bar or chisel to lever the stop bead off the frame. Top tip! Start in the middle and then work out towards the ends, the bead is more flexible in the middle.

2. Once the Stop Beads have been removed you can then start to remove the bottom sash.

3. Remove the existing parting beads. Use your knife around as much as the parting bead as possible to loosen any paint, then use the chisel or flat pry bar to lever the bead out of groove of the frame. Do this all the way around the frame making sure you remove the parting bead at the top of the sash also.

4. Now it’s time to measure up. TOP TIP! Measure twice, cut once.Start with the top parting bead. Measure horizontally between the frame and add a few mm to this as you want the bead to go all the way across the head of the window.It is recommended to pre-drill your holes in the beads before nailing. Then fix the parting bead in position and nail in (40mm nails recommended).

5. Next, measure up for the side parting beads. Measure from the sill up to the parting bead you have just installed in step 4 above.

6. Cut your pieces for the left and right side then cut each in half at the halfway point. Make a pencil mark at the halfway point and cut. Top tip! Apply a small amount of superglue to the top and the bottom between the plastic and the brush of each parting bead to stop the pile moving.

7. Pre dill holes in the parting bead and nail into place.

8. On the bottom half of the window install the parting bead so that the pile faces inwards. On the top half of the window switch the bead over so that the pile faces outwards. This will cushion the sashes and eliminate the gaps.

9. Reinstall the bottom sash.

10. Now measure up for your stop / staff beads. Install the beads. Push them to the bottom sash so that they close the gap but are not too tight, You want the gap filled but still be able to move the window up and down. As previously done with your parting beads, pre-drill your holes and nail into place.

Tools you'll need

A sharp utility knife, a flat pry bar or chisel, a tape measure and pencil, a saw for cutting the beads, a drill for pre-drilling, a hammer and 40mm nails.

Optional hardware kit

Finish the window with matching hardware

Add two sash lifts and a fitch fastener to your kit. Choose a finish under "Style" at the top of the page.

Polished brassAntique brassPolished chromeSatin chrome

+$15with hardware

Questions

Good to know

Will one kit do my window?

One kit seals one double hung sash window up to 2m high and 1m wide. For larger windows, or if you're unsure, give us a call and we'll work out what you need.

Grey or white brush?

It's your choice. Pick the colour you'd rather see against your paintwork. You choose it under "Colour of Brush" at the top of the page.

Does the timber need painting?

Yes. The beads come lightly primed with undercoat, so they're ready for your final coats once installed.

How does delivery work?

We deliver Australia-wide, and shipping is calculated at checkout. Orders are usually picked and packed within 2 business days. Delivery times are estimates, so allow extra time around public holidays.

Can I pick up in Sydney?

Yes, pick-up is free from our warehouse in Warriewood, just off Mona Vale Road. Choose Pick up at checkout and we'll message you the address when your order is ready.

I'm doing a few windows, or I'm a tradie

Order one kit per window. For bigger jobs or trade pricing, call us on 02 7228 0625.

Not sure it's right for your window?

Talk to people who restore sash windows. We're happy to help before you buy, or while you're fitting it.
