Meeting Rail Draught Seal – Brush and Fin Strip

Meeting Rail Draught Seal – Brush and Fin Strip

Name: Adhesive Pile Carrier with Brush
Rating: 5.00 (1 reviews)

Price

Save

How do I draught proof the meeting rail?The meeting rail is where the top and bottom sashes meet, horizontally across the middle of the window. It's a question we're asked a lot, and this is the answer.

A white brush and twin-fin seal in a self-adhesive carrier. Route a small channel along the top of the bottom sash, peel and press it in, and it seals against the top sash when the window is closed.

Needs a routed channelYou'll route an 8mm × 3.5mm groove in the top of the bottom sash. It's really the only way to properly draught proof this part of the window.

Brush and twin fin pre-fitted
Self-adhesive backing
Fits an 8 × 3.5mm groove
White, blends with most finishes

Two brush heights: 5.5mm or 8.5mmIt depends on how big your gap is. Some windows are very gappy, and the taller 8.5mm brush suits those. Choose your height below. Not sure? Call 02 7228 0625 and we'll help.

Also suits frames and sashes. Other ways to use it

Size 1 metre 1.5 metre 2 metre 3 metre

Brush Height 5.5mm 8.5mm

Quantity

Kit

Doing the whole window? Kit from $115Includes this meeting rail seal, plus staff beads, parting beads and sash cord. View the kit →

Delivery Australia-wideShipping calculated at checkout

Free pick-up in Warriewood, SydneyWe'll message you the address when it's ready

Questions? 02 7228 0625Talk to us about sealing your window

You might also need

Meeting Rail Draught Seal – Brush and Fin Strip

8 × 3.5Routed groove in mmSits flush in the timber

Brush + finPre-fittedTwin central fin

PeelSelf-adhesive backPress into the groove

5.5 or 8.5Brush height in mmTo suit your gap

The meeting rail

How do I draught proof where the sashes meet?

A question we're asked a lot

The meeting rail is where the top and bottom sashes meet, running horizontally across the middle of the window. It's a common source of draughts and rattles, and people ask us a lot how to seal it.

This is the answer. It does mean routing a small channel in the top of the bottom sash, but it's really the only way to properly draught proof this part of the window.

Route a channel

Cut an 8mm wide, 3.5mm deep groove along the top of the bottom sash's meeting rail.

Peel and press it in

The carrier has a self-adhesive back and sits flush in the groove, with the brush and fin standing up.

Close the window

The brush and fin seal against the top sash where the two meet, closing the gap that lets draughts and rattles in.

Other ways to use it

Some people use it elsewhere too

Some people also like to route this strip into the window frame or the sashes. It's simply the way they prefer to do it.

The meeting rail

Routed into the top of the bottom sash, where the two sashes meet in the middle.

Also suits

The window frame

Routed into the frame to seal the top, bottom or sides of the window.

Also suits

The sashes

Routed into the edges of the sashes themselves, wherever you need a seal.

Available in1m1.5m2m3m

Installation

Fitting it

You'll need a router. Call us if you'd like to talk it through first.

Route the groove

Use an 8mm straight router bit to cut a groove 3.5mm deep.

Clean it out

Make sure the groove is clean, dry and free of dust.

Peel and press

Cut to length, peel the backing and press the carrier firmly into the groove.

Fix the ends

Add a small dab of mitre glue or superglue at each end so the brush stays put over time.

Tip: keep paint off the brush so it stays soft and seals well.

Specifications

Product details

CarrierWhite PVC, 8.0mm wide × 3.5mm deep

BrushSiliconised polypropylene pile with a twin central fin, pre-fitted

Brush height5.5mm or 8.5mm, depending on how big your gap is

ColourWhite carrier and brush

FittingSelf-adhesive backing, into an 8mm × 3.5mm routed groove

Lengths1m, 1.5m, 2m, 3m

Best forMeeting rails, plus frames and sashes

Complete the seal

DIY Draught Seal KitIncludes this meeting rail seal, plus staff beads, parting beads and sash cord

From $115 →

Draught seal stop / staff beadSeals the inside of the window

View →

Draught seal parting beadSeals between the two sashes

View →

From our blog

Good to know

Do I have to route a channel?

Yes. The carrier sits flush in an 8mm wide, 3.5mm deep groove. It's a small job with a router, and it's really the only way to properly draught proof the meeting rail. If you don't have a router, a local carpenter can do it quickly.

Where else can I use it?

Some people route it into the window frame or the sashes to seal the top, bottom or sides. It's simply the way some people prefer to do it. Call us if you'd like to talk it through.

Which brush height do I need?

We can fit either a 5.5mm or an 8.5mm brush, depending on how big your gap is. Some windows are very gappy, and the taller 8.5mm brush suits those. Not sure? Call us on 02 7228 0625 and we'll help you choose.

What lengths does it come in?

1m, 1.5m, 2m, 3m. Cut it to fit on site.

How does delivery work?

We deliver Australia-wide, and shipping is calculated at checkout. Orders are usually picked and packed within 2 business days. Delivery times are estimates, so allow extra time around public holidays.

Can I pick up in Sydney?

Yes, pick-up is free from our warehouse in Warriewood, just off Mona Vale Road. Choose Pick up at checkout and we'll message you the address when your order is ready.

I'm a tradie, or need a lot

Call us on 02 7228 0625 for bigger orders and trade pricing.

Not sure how to seal your window?

Send us a photo or give us a call. We're happy to help before you buy, or while you're fitting it.

Call us02 7228 0625

Homeowners and tradies, Australia-wide

5.0Every review 5 stars on Google

★★★★★

Had eight sash windows in an old federation era home that needed an overhaul (all hardware replaced, rebalancing, draught sealing). We couldn't have been any happier than our choice to go with Lock and Latch. The quality of the products is great, and the pricing is very competitive (especially the draught seal kits).

Kathan Sethi · Local Guide

I initially purchased the Ecobead mouldings for a single double hung sash window I was restoring, and the result was excellent. The beading comes primed, and it is uncomplicated in terms of trimming up and modifying to suit. The draught proofing has been a success, and no more rattling either.

Michael

This product is fantastic! Ive used it many times now and it saves me so much time and hassle of splicing. Now I can do many repairs onsite instead of having to take windows back to the workshop to fabricate parts. Once dry, its more solid that the timber!

P A · Local Guide · Evermend 4 hour cure

Meeting Rail Draught Seal – Brush and Fin Strip

You might also need

How do I draught proof where the sashes meet?

Route a channel

Peel and press it in

Close the window

Some people use it elsewhere too

The meeting rail

The window frame

The sashes

Fitting it

Route the groove

Clean it out

Peel and press

Fix the ends

Product details

Read more about draught proofing

How to Draught Proof a Double Hung Sash Window (Step by Step)

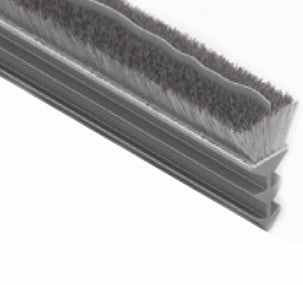

Sash Windows: Compression Seals vs Brush Seals - Myths Debunked!
